The Flow Frames are designed to fit a standard Langstroth deep super. The Flow Super has the same measurements as a Langstroth deep (8 or 10 frame) super.

The height of the Flow frame is 242mm; this perfectly fits a Langstroth deep box.

The width of the clear frame ends is set to 51mm. Flow Frames are wider than traditional Langstroth frames which means they hold more honey and the deeper cells discourage the queen from laying, however, we do encourage the use of a queen excluder.

A standard Langstroth 8-frame deep fits 6 Flow Frames. A standard Langstroth 10-frame deep fits 7 Flow Frames.

The length of a Flow Frame is adjustable. A standard Flow Frame is 480mm long; however, you can reduce the length in increments of 12mm by removing some of the comb blades. This allows you to adapt the length of the frames to many different sized hives.

Please note, while we encourage the creative use of our product, disassembly or modification of your Flow Frames from their original format will void your warranty.

See also 'Flow Hive & Frames Weights and Dimensions' page.

UK National Flow Frames (shorter)

A UK National fits 8 shorter Flow Frames; however, the depth of the UK National would need to be modified (check out our UK National sized Flow Super here).

What are the dimensions of the Flow Frames?

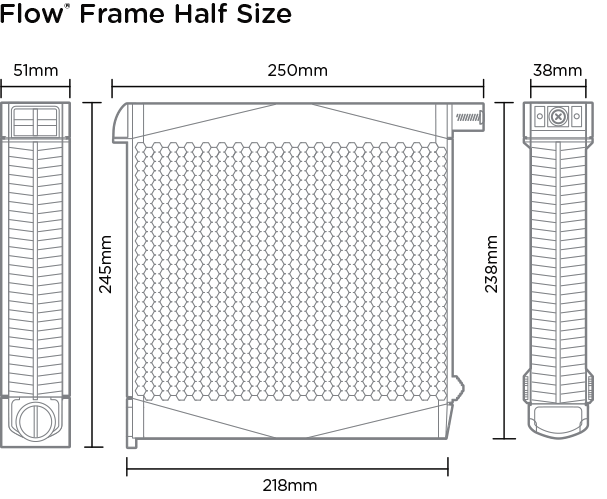

Flow Frames Half Size

These Flow Frames are developed specifically to fit within the square Japanese Honey Bee hive (pile box), for use with the Japanese Honey Bee, or other Eastern Honey Bee (Apis cerana) subspecies.
A pile box measured 210mm x 250mm x 245mm will fit 4x Half Size Flow Frames.
